Floorplan - 2007 Forest River RV Cardinal 30TS
-
-
-
-
-
-
-
-
-
-
-
-
+13-
34ft long
-
10,755 lbs
-
Sleeps 6
-
3 slides
-
Rear Living AreaFront Bedroom

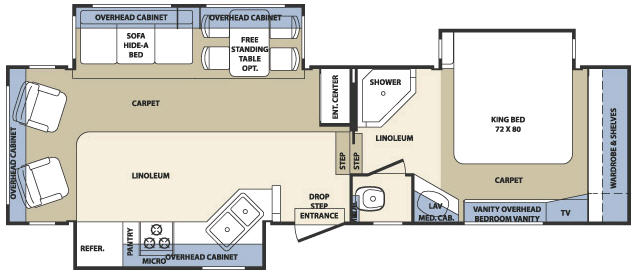

30TS Floorplan
Specifications
| Sleeps | 6 | Slides | 3 |
| Length | 33 ft 6 in | Ext Width | 8 ft |
| Ext Height | 12 ft 8 in | Int Height | 6 ft 6 in |
| Hitch Weight | 2080 lbs | GVWR | 14080 lbs |
| Dry Weight | 10755 lbs | Cargo Capacity | 3325 lbs |
| Fresh Water Capacity | 65 gals | Black Water Capacity | 120 gals |
| Tire Size | ST235/80R16LRE | Furnace BTU | 35000 btu |
Description
Triple Slide, Rear Living w/2 Recliners, Sofa, Booth Dinette w/Opt. Free-Standing Table & Chairs, Refrigerator, 3 Burner Range, Pantry, Microwave, Double Kitchen Sink, Ent. Center, Step Up to Bed/Bath, Angle Shower, Separate Stool Room, King Bed Slideout, Full End Wardrobe, TV, Vanity, and More.
Features
Standard Features - Travel Trailer (2007)
Interior
- High-Back Recliners
- Day/Night Shades
- Phone Jacks
- Cable TV Hook-Up
- End Table (31RKT, 32TS)
- Oak Edged Countertops
- Hide-A-Bed Sofa
- Deluxe Wall Clock
- Oak Accents on Slide-Outs
- Cathedral Raised Panel Cabinet Door
- Ball-Bearing Drawer Glides w/ Full Side Drawers
- 3 Burner Hi-Output Range w/ 22" Oven
- Light at Entry Door Step
- Overhead Cabinet in Main Slide-Out Room
- 6+2 Stereo Sound System w/ CD
- Cable TV Hook-Ups
- 110 Outlet in Kitchen Wall
- Knife and Spice Rack
- Raised Panel Refer Insert
Exterior
- Deluxe Awning
- Dark Tinted Safety Glass Clamp Ring Windows
- Fiberglass Front Cap
- Front Stone Guard / Awning (if Applicable)
- LP Bottle Cover
- Heated and Enclosed Holding Tanks
- Extra-Wide 30" Entry Door (most Models)
- Radius Roof Edges
- High-Glossed Fiberglass Exterior
- Rubber Roof
- Radius Entry Door
- Triple Entry Step
- Large Endwall Windows in Slide-Out w/ Slider Window
- Folding Assist Handle
- Security Lights
- Stabilizer Jacks (4)
- Attic Vents
- 16" Tires and Wheels
- E-Z Lube Axles
- Outside Stereo Speakers
- 16" Spare Tire
Construction
- Flush Floor Hydraulic Slide-Out w/ Laminated Walls and Roof
- Welded Aluminum Framed, Laminated Side Walls (2")
- Welded Aluminum Framed Roof and Floor
- Block Foam Insulation
- 5" Roof Rafters
- Floor Insulation (R-18)
- Double Insulated in Roof (R-14)
- Sidewall Insulation (R-8)
- 5/8" Tongue and Groove Plywood Floor (Screwed)
- 3/8" Roof Decking (Screwed)
Bed/Bath & Appliances
- Innerspring Mattress w/ Ultra Deluxe Bedspread, Pillows and Headboard
- Super Storage Under Bed (Non Slides)
- Bed Lifter
- Porcelain Stool w/ Foot Flush
- ABS Shower w/ ABS Surround
- Glass Shower Door
- Fantastic Fan (Bathroom)
- Vinyl Floor in Stool Area
- 15 BTU A/C w/ QuickCool and Solar Panel
- 3-Burner Hi-Output Range (22")
- Microwave 22" Over the Range
- 6 Gal. Gas/Electric DSI Water Heater
- Double Door Refer (8' w/ Adjustable Temperature Control)
- TV Antenna w/ Booster
- Water Heater Bypass
- 35M BTU Furnace
- Single Lever Kitchen Faucet w/ Pull Out Sprayer
- Black Tank Flush
- 50 Amp Service
- Command Center for Systems Control
- LP Leak Detector
- Water Purifier
- Monitor Panel
- Folding Range Cover
- Quick Winterization Kit
- Black Flush Tank
See us for a complete list of 5th wheel features & available options for both travel trailer & 5th wheel!
